Power user, meet Gateway (development kit)

Gateway is a next-generation, high-performance router designed from the ground up to deliver 10-gigabit speeds, advanced security, and total transparency—powered by open-source software.

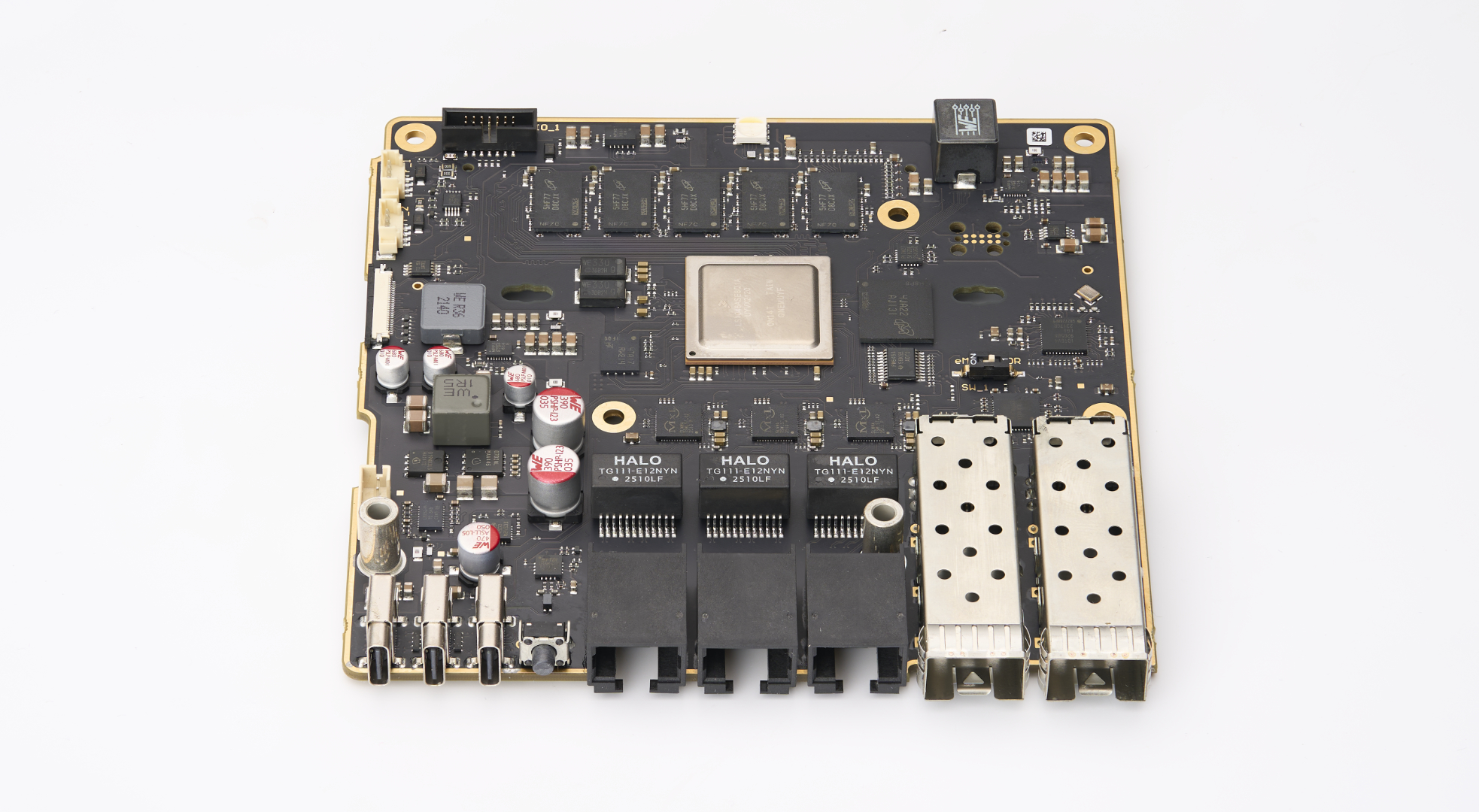

Gateway PCB

What's inside the kit

Powerful Quad-Core Processor.
NXP Layerscape LS1046A (1.6 GHz, 4-core), delivering up to 26 Gbps line-rate throughput for VLANs, PPPoE, and NAT.
High-Speed Networking.
Two 10Gbps SFP+ cages and three RJ-45 gigabit ports for maximum connectivity.
Expandable Wireless Capabilities.
Two M.2 key-E slots; One for a tri-radio card (WiFi 5 + Bluetooth + Thread) and one for WiFi 6

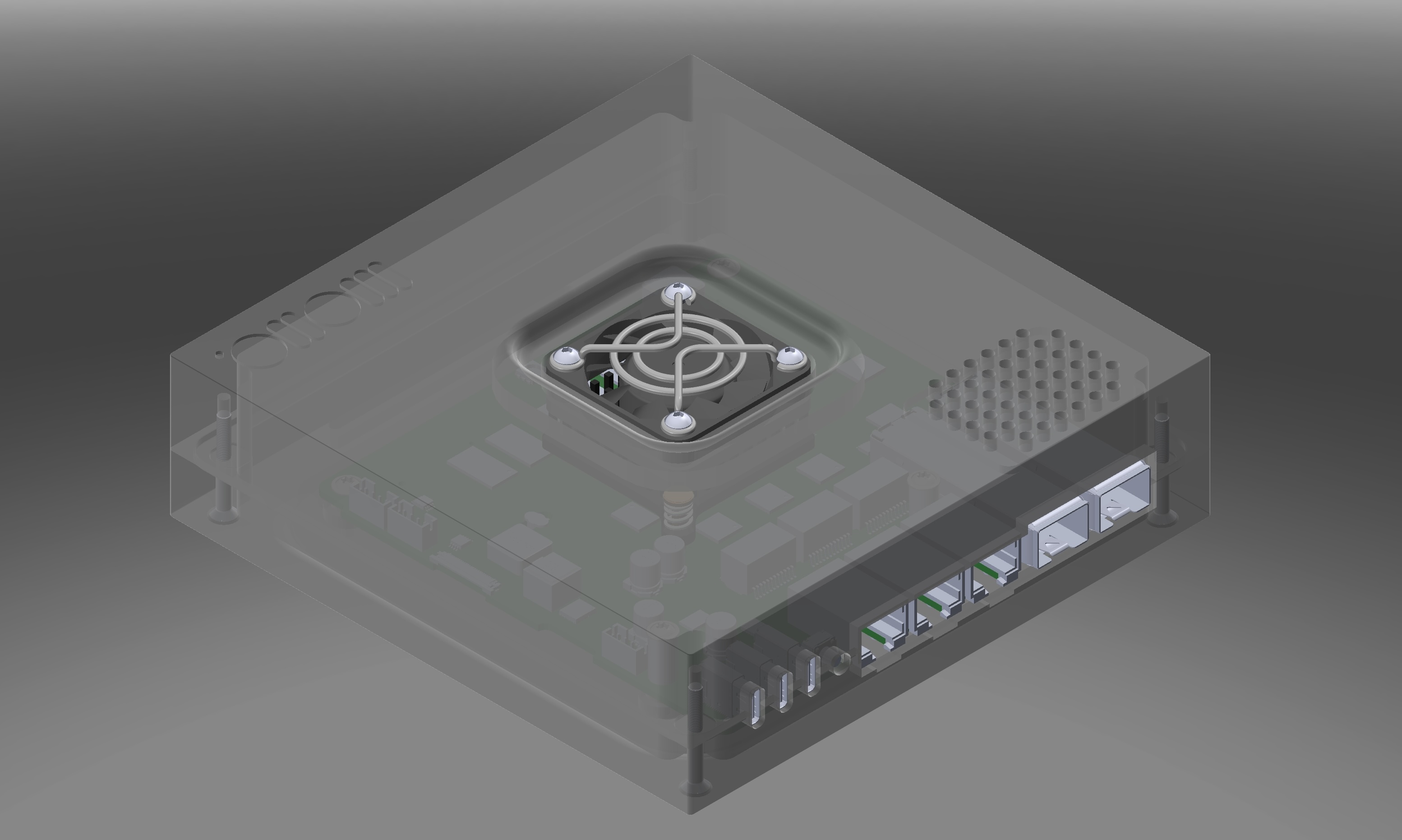

Polycarbonate enclosure.
Easy access to all parts of the device while also making sure everything is properly protected when in normal operation.
Active Cooling.
Push the CPU to its limits without thermal throttling. Fan and heatsink from world-leading manufacturers.
Precision Monitoring and Testing.
8 power sensors and 2 temperature sensors for real-time system insights. 100+ test points to measure various voltages and signals.
Full Developer Access.
USB-C console/UART port for debugging and development.
Ample Storage.
32GB eMMC for OS and data, plus 64MB NOR flash for the bootloader.
USB Charger.
65W should be plenty enough, right?

Specifications

CPU
  • NXP Layerscape LS1046A
  • 4 cores
  • 1.6 GHz
RAM
  • 8 GB
  • 2100 MT/s
  • ECC support
Networking
  • 2x SFP+ 10 Gb
  • 3x RJ-45 1 Gb
Wifi
  • 1x M.2 Key-E connector for Wifi 6.0 2x2 MU-MIMO
  • 1x M.2 Key-E connector for tri-radio (Wifi 5.0, Bluetooth, Thread)
Storage
  • 32 GB eMMC for Operating System
  • 64 MB NOR flash for Bootloader
Debugging
  • JTAG connector
  • 100+ test points throughout the PCB
  • UART USB-C port
  • Status RGB LED
Power
USB-C PD 3.0
Connectivity
1x USB-C 3.0 port
Active cooling support
Yes, 2 4-pin PWM 5V fan headers

The best of the best

Unlike the Founders Edition, development kits will undergo no price optimizations so you'll receive everything that the internal team uses for development of the final product.

$600 final price of the kit

  • Shipping between June and September 2025

  • Preloaded with OpenWRT

  • Shipping Worldwide

  • Reservation fee: $100 (deducted at purchase)

Product screenshot

Frequently asked questions

What is the purpose of the development kit?

We plan for this device to be released in two variants: The founders edition (CNC-milled aluminium enclosure) and rackmount edition (sheet metal enclosure). But because it takes a significant amount of time to certify those two, we decided to release the development kit for networking enthusiasts who want to get their hands on the device before it's certified.

How it the development kit different from either of the two final variants?

To achieve the best possible price for both final variants, we will of course have to optimize everything, from individual components, their capacities (in case of storage, for example) as well as the manufacturers. Wihtout sacrificing the performance, reliability and durability!

Development kits will undergo no such optimizations. Every part, component and manufacturer are what we consider the best in the industry, and we use this combination of the three to manufacture what we believe is the best possible quality not just of each individual part but also the device as a whole.

What operating systems will it support?

We plan to ship Gateway development kit with OpenWRT because we have tested it and know it works reliably. However, we also tested a number of Linux distributions as well as networking-specific operating systems (VyOS) and technologies (VPP + DPDK) so our goal is to not limit you to anything specific. If it compiles for ARM64 architecture, it will work on our device.

Will I be able to swap the polycarbonate case for CNC-milled aluminium one?

Yes! All early backers of the project will be able to purchase a CNC-milled aluminium enclosure and swap it out with the polycarbonate one that the development kit will ship with by default. This way you'll end up with the most powerful version of our PCB with the best looking enclosure!

Why Gateway?

Have you ever been frustrated with your router? We get, it, we have been as well, which is why we decided to do something about it. With Gateway, building a high-quality router is not the goal, it's just the beggining.

Our goal is, and has always been, to build a community of people who care about the security, transparency and reliability of their (home) networks, and we believe we can achieve that by setting an example - in the form of Gateway.

Preorder your Gateway development kit today and be among the first to shape the future of open networking.

Cancel anytime and get a full refund, no questions asked.
